| Brand Name : | SADT |
| Model Number : | GL60 |
| Certification : | ISO9001, CE, SGS |
| Price : | Negotiation |
| Payment Terms : | T/T, Western Union, Paypal |
| Supply Ability : | 5000 pcs /year |
| Delivery Time : | 3 days upon advanced payment |

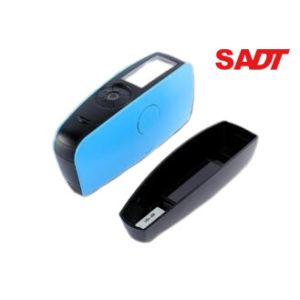

Gloss Meter GL60
GL60 is a precision gloss meter with independent intellectualproperty rights. It’s manufactured according to internationalstandard IS02813 and China standard GB/T 9754. It can meetthe second grade requirements of JJG696.
KEY FEATURES
Standard package - GL60
GL60 main unit 1
User manual 1
calibration plate 1
Optional accessory
Miniature printer
Specifications
| Model | GL60 |
| Measuring Angle | 60° |
| Measuring Range | 0-200GU |
| Measurement Spot (mm) | 9x15 |
| Resolution (Gu) | 1 |
| Repeatability(Gu) | ±1(0~100);±1%(100~200) |
| Readout Error(Gu) | ±1.5,±1.5% |
| Auto Power-off Time | 30s |
| Measuring Modes | Basic mode |
| Calibration | Manual |
| Language | Chinese & English |
| Storage | N/A |
| Display | 2.3” monochrome |
| Size (mm) | 160*52*84 |
| Weight | 300g |
| Power supply | AA battery x 1 (can measure 10000 times) or use USB Charge |
| lnterface | USB for charging |
| PC Software | N/A |
| Operation Temperature | 0~40°C(32~104°F) |
| Storage Temperature | -20~50°C(-4~122°F) |
| Humidity | <85% RH, without condensation |
| Standards | ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457 |
| Chromaticity Corresponding | Corresponding with CIE 1931(2°) under CIE C light source |
|
