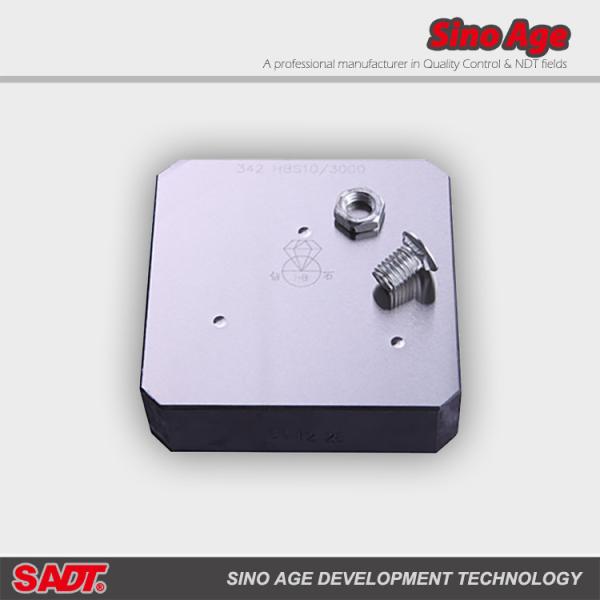

Hardness Calibration TEST BLOCK
Standard hardness blocks are used for calibrating hardness tester,
it can check whether the readings of the hardness tester are within
the scope of the international standards. Each hardness block is
engraved with serial numbers, which can ensure the traceability.
The hardness standard blocks are made of high quality materials,
which can ensure the reliability and stability of hardness value.
We provoide various types of hardness blocks that can satisfied
most requirements of hardness testing
Specifications
| Hardness Block | Hardness Range | Hardness Block | Hardness Range |
| HLD (Leeb) | 550 - 790 | HLG (Leeb) | 500 - 600 |
| HRC (Rockwell) | 60 - 90 | HRA (Rockwell) | 60 - 70 |
| HRC (Rockwell) | 35 - 55 | HRB (Rockwell) | 80 - 95 |
| HRC (Rockwell) | 20 - 30 | HRB (Rockwell) | 60 - 70 |
| HRA (Rockwell) | 70 - 85 | HRN15(Superficial Rockwell) | 88 - 92 |
| HRN30(Superficial Rockwell) | 74 - 82 | HRN30(Superficial Rockwell) | 45 - 55 |
| HRN45(Superficial Rockwell) | 45 - 55 | HRT15(Superficial Rockwell) | 85 - 91 |
| HRT30(Superficial Rockwell) | 70 - 80 | HRT45(Superficial Rockwell) | 54 - 72 |
| HV3 (Vickers) | 700 - 800 | HV5 (Vickers) | 700 - 800 |
| HV5 (Vickers) | 400 - 600 | HV5 (Vickers) | 175 - 225 |
| HV10 (Vickers) | 700 - 800 | HV10 (Vickers) | 400 - 600 |
| HV30 (Vickers) | 700 - 800 | HV30 (Vickers) | 400 - 600 |
| HV50 (Vickers) | 700 - 800 | HV100 (Vickers) | 400 -500 |
| HV1 (Micro) | 700 - 800 | HV0.5 (Micro) | 700 - 800 |
| HV0.3 (Micro) | 700 - 800 | HV0.2 (Micro) | 700 - 800 |
| HV0.2 (Micro) | 400 - 600 | HV0.1 (Micro) | 400 - 600 |
| HV0.1 (Micro) | 175 - 225 | HV0.05 (Micro) | 175 - 225 |
| HBW10/1000 (Brinell) | 75 - 125 | HBW5/250 (Brinell) | 75 - 125 |
| HBW2.5/62.5 (Brinell) | 75 - 125 | HBW10/3000 (Brinell) | 150 - 250 |
| HBW5/750 (Brinell) | 150 - 250 | HBW2.5/187.5 (Brinell) | 150 - 250 |
| HBW10/3000 (Brinell) | 250 - 350 | HBW5/750 (Brinell) | 250 - 350 |
| HBW10/3000 (Brinell) | 250 - 350 | HBW2.5/187.5 (Brinell) | 150 - 250 |
| HBW2.5/187.5 (Brinell) | 250 - 350 | HBW10/3000 (Brinell) | 400 - 500 |
Sino Age Development Technology, Ltd. (SADT), established in 1993,
is a leading manufacturer for measuring and testing instrument,
specialized in NDT and quality control fields. We have our own
HARTIP series portable hardness testers since 1995. We are
professional producer with ISO 9001 quality system. Most of the
products are applied with CE certificate.
Now our main products cover hardness tester, ultrasonic thickness
gauge, concrete test hammer, gloss meter, colorimeter, roughness
tester, metallurgical microscope, ultrasonic flaw detector and so
on. We have exported our products in batch quantity to overseas
market since 1996. Our main overseas markets are: USA, Canada,
Germany, France, Netherlands, Finland, Italy, Czech Republic,
Poland, Lithuania, Estonia, Serbia, Russia, Greece, Turkey,
Australia, New Zealand, Korea, Taiwan, Singapore, Thailand,
Indonesia, Malaysia, Vietnam, India, Pakistan, Iran, UAE, Egypt,
South Africa, Mexico and Columbia, Peru and etc. All products
supplied by SADT have excellent quality and competitive price with
our best service.
