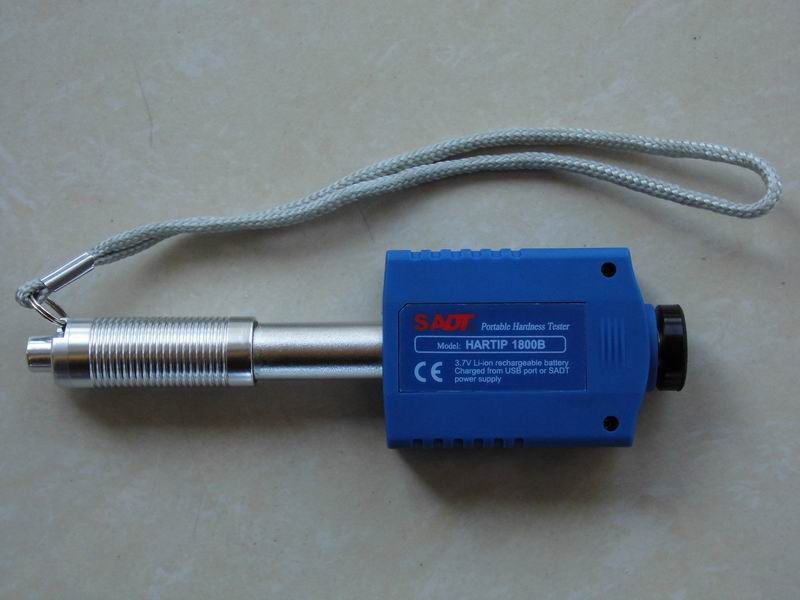

This instrument is an advanced state-of-the-art palm sized metal
hardness tester with many new features which are light weight, easy
operation, integrated design, high contrast display, low operating
temperature, auto compensating for impact direction and etc. It can
be widely used for measuring hardness of almost all ferrous and
non-ferrous metal materials for scale of Leeb hardness, Rockwell C,
B &A, Brinell, Vickers, Shore and Strength.
This tester has a memory capacity of 4000 data. The measuring value
can be printed out to micro-printer by RS232 or Bluetooth. All
stored data can be recalled and read on the tester easily.
It also has a very unique feature, which impact device can convert
between D and DL simply by changing impact body. This two-in-one
probe is equivalent to two individual probes. With this optional
accessory, you can take measurement at very narrow surface such as
slot bottom, gear tooth that probe D cannot match.
•Integrated design , easy operation
•Universal impact direction, it does not need to setup different
impact direction, it will be recognized automatically
•Screen view displays in four different directions, more convenient
to view
•Huge memories, data can be recalled easily
•it can connect to computer by USB or wirelessly
•Customer re-calibration allowed
•Statistics value can be calculated automatically
•With strength conversion value
Applications:
- Hardness tests on installed machines or steel structures: e.g. on
heavy and largework-piece or on permanently installed system parts.
- Rapid testing of multiple measuring areas for examination of
hardness variations over larger regions.
- Measuring hardness for produced parts at production line.
- Identifying metallic material stored in a warehouse.
- Ineffectiveness analysis of permanent parts, pressure -vessel,
turbo generator.
Specifications:
| SADT HARTIP 1800B hardness tester |
|---|
| Principle | Leeb hardness measurement |
| Accuracy | ±0.3% @ HL=800 / ±2HL |
| Display | High contrast OLED |
| Hardness scale | HL/HRC/HRB/HB/HV/HS/HRA/σb |
| Measuring range | HL170-960 / HRC17-70 / HRB13-109 / HB20-655 / HV80-940 / HS32-99.5
/ HRA30-88 / σb(rm)255-2639N/mm²
|
| Impact device | D |
| Materials | 10 common metal materials |
| Memory | 4 blocks, 999 data for each block , can be saved
and re-readable |
| Statistics function | Average / Max. / Min. / S. value |
| Re-calibration | Allowed by user |
| Indicator | Low battery |
Communication
interface | USB to PC for transferring data or printing, USB
for charging |
| Auto power off | Auto |
| Power supply | 3.7V Li-ion rechargeable battery |
| Working environment | -40ºC~+70ºC |
| Dimension (mm) | 148x44x22 |
| Net weight (g) | 110 |
| Standards | Conforming to ASTM A956, DIN 50156, GB/T 17394-1998 |
