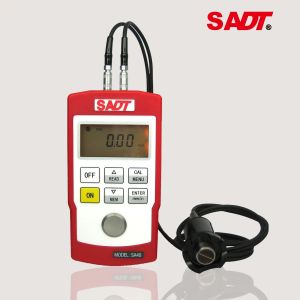

Coupling Indication Ultrasonic Wall Thickness Gauge Portable , High Resolution

SA40 is the miniaturized ultrasonic thickness gauge that can measure wall thickness and velocity. Our intelligent gauge is designed to measure the thickness of metallic and non-metallic materials such as steel, aluminum, brass, silver, oil, acrylic resin, glycerin, water glass and etc. It is quite versatile model which can be easily equipped with the low & high frequency probes as well as a high temperature probe.

Details:

Specifications:

Technique: pulse echo with dual probe
Display: 4 digits LCD with backlight
Measuring range: 0.8 to 225.0mm
Resolution : 0.01mm@0.8-99.99mm, 0.1mm@100.0-225.0mm
Velocity range: 500-9999m/sec.
Display circle: 1 sec.
Coupling indication
Memory: 400 data can be stored and re-readable
Units: mm or inch
Low battery indicator on LCD
Auto shut-off: after 5 min. of non-use
Power: 2 ea. 1.5V AA alkaline cells
Operating temperature: 0-40°C
Operating humidity: 20-90%RH
Weight: 240g

PT-5 5MHZ Dia.Φ10mm For standard applications
XT-5 5MHZ Dia.Φ7mm For tubes with small diameter
GT-5 5MHZ Dia.Φ12mm For high temperature up to 400℃

Standard package:

SA40 main body

Standard probe PT-5

Coupling paste

Operation manual

Carrying case
